Getting Started with deepMatchR

Introduction

Human leukocyte antigen (HLA) molecules are central to both innate and adaptive immune responses. Characterizing HLA antibodies and typing plays a pivotal role in bone marrow and solid organ transplantation.

deepMatchR provides a collection of tools that use advanced statistical approaches and deep learning to better characterize HLA immunogenicity for clinical and research applications.

Key capabilities include:

Sequence-level mismatch quantification (amino acid and eplet)
Peptide-MHC binding prediction
Visualization of antibody reactivity data
Integration with standard HLA nomenclature

For more information, visit the deepMatchR GitHub repository.

Installation

# Install from Bioconductor (when available)
if (!requireNamespace("BiocManager", quietly = TRUE))
    install.packages("BiocManager")
BiocManager::install("deepMatchR")

# Or install the development version from GitHub
# remotes::install_github("BorchLab/deepMatchR")

Quick Start

library(deepMatchR)
library(dplyr)
library(ggplot2)

Working with HLA Data

Built-in Example Data

deepMatchR includes simulated assay data for learning and testing:

Class I SAB - Single Antigen Bead assay results
Class II SAB - Single Antigen Bead assay results
PRA - Panel Reactive Antibody assay results

data("deepMatchR_example")

Data Format Requirements

For downstream analysis, your data must include these columns:

Column	Description	Example
`BeadID`	Unique bead identifier	1, 2, 3…
`SpecAbbr`	Abbreviated specificity	A01, B35
`Specificity`	Full specificity string	“A01:01, B07:01”
`NormalValue`	Measured MFI value	15234

# Class I SAB example
head(deepMatchR_example[[1]], 3)
#>   BeadID         SpecAbbr       Specificity NormalValue  RawData CountValue
#> 1      1  -,-,-,-,-,-,-,-       -,-,-,-,-,-          NA    48.04         77
#> 2      2  -,-,-,-,-,-,-,-       -,-,-,-,-,-          NA 14068.42         78
#> 3      3 A1,-,-,-,-,-,-,- A*01:01,-,-,-,-,-           0    37.41         73

# Class II SAB example
head(deepMatchR_example[[2]], 3)
#>   BeadID          SpecAbbr                      Specificity  RawData
#> 1      1   -,-,-,-,-,-,-,-          -,-,-,-,-,-,-,-,-,-,-,-    15.51
#> 2      2   -,-,-,-,-,-,-,-          -,-,-,-,-,-,-,-,-,-,-,- 13759.52
#> 3      3 DR1,-,-,-,-,-,-,- DRB1*01:01,-,-,-,-,-,-,-,-,-,-,-   131.86
#>   NormalValue CountValue
#> 1          NA        128
#> 2          NA         56
#> 3       75.22        117

# PRA example
head(deepMatchR_example[[3]], 3)
#>     BeadID               SpecAbbr                         Specificity
#> 98       1
#> 99       2
#> 100      3 A2,-,B46,-,Bw6,-,Cw1,- A*02:01,A*02:07,B*46:01,-,C*01:02,-
#>     NormalValue RawData CountValue
#> 98           NA   12.13        272
#> 99           NA 9209.35        277
#> 100       551.9  602.17        152

Creating HLA Genotypes

The hlaGeno() function creates standardized genotype objects used throughout the package.

# Define recipient and donor genotypes
recipient <- data.frame(
  A_1 = "A*01:01", A_2 = "A*02:01",
  B_1 = "B*07:02", B_2 = "B*08:01",
  DQA1_1 = "DQA1*02:01", DQA1_2 = "DQA1*05:05",
  DQB1_1 = "DQB1*02:02", DQB1_2 = "DQB1*03:01"
)

donor <- data.frame(
  A_1 = "A*03:01", A_2 = "A*24:02",
  B_1 = "B*44:02", B_2 = "B*51:01",
  DQA1_1 = "DQA1*05:05", DQA1_2 = "DQA1*01:02",
  DQB1_1 = "DQB1*06:02", DQB1_2 = "DQB1*03:01"
)

# Create genotype objects
rgeno <- hlaGeno(recipient)
dgeno <- hlaGeno(donor)

Sequence-Level Analysis

Retrieving Allele Sequences

The getAlleleSequence() function retrieves protein sequences from the IMGT/HLA database.

# Get the amino acid sequence for A*01:01
a0101_seq <- getAlleleSequence("A*01:01")

# View first 50 amino acids
substr(a0101_seq, 1, 50)
#> [1] "MAVMAPRTLLLLLSGALALTQTWAGSHSMRYFFTSVSRPGRGEPRFIAVG"

Quantifying Amino Acid Mismatches

The quantifyMismatch() function compares two protein sequences and counts differences. You can optionally filter by biophysical properties.

Basic Usage

seq1 <- "YFAMYGEKVAHTHVDTLYVRYHY"
seq2 <- "YFDMYGEKVAHTHVDTLYVRFHY"

# Count all mismatches
quantifyMismatch(seq1, seq2)
#> [1] 2

Filtering by Biophysical Properties

deepMatchR uses these classification models:

Charge: K/R/H = positive; D/E = negative; others = neutral
Polarity: Nonpolar {A,V,L,I,P,M,F,W,G}; Polar {S,T,N,Q,Y,C,H,K,R,D,E}

# Only charge-changing mismatches
quantifyMismatch(seq1,
                 seq2,
                 filter_charge = TRUE)
#> [1] 1

# Only polarity-changing mismatches
quantifyMismatch(seq1,
                 seq2,
                 filter_polarity = TRUE)
#> [1] 2

# Both charge AND polarity changing
quantifyMismatch(seq1,
                 seq2,
                 filter_charge = TRUE,
                 filter_polarity = TRUE)
#> [1] 1

Detailed Position-by-Position Analysis

details <- quantifyMismatch(seq1,
                            seq2,
                            return = "detail")
head(details)
#>   alignment_position ref alt is_gap_ref is_gap_alt is_mismatch charge_ref
#> 1                  1   Y   Y      FALSE      FALSE       FALSE        neu
#> 2                  2   F   F      FALSE      FALSE       FALSE        neu
#> 3                  3   A   D      FALSE      FALSE        TRUE        neu
#> 4                  4   M   M      FALSE      FALSE       FALSE        neu
#> 5                  5   Y   Y      FALSE      FALSE       FALSE        neu
#> 6                  6   G   G      FALSE      FALSE       FALSE        neu
#>   charge_alt charge_change polarity_ref polarity_alt polarity_change counted
#> 1        neu         FALSE        polar        polar           FALSE   FALSE
#> 2        neu         FALSE     nonpolar     nonpolar           FALSE   FALSE
#> 3        neg          TRUE     nonpolar        polar            TRUE    TRUE
#> 4        neu         FALSE     nonpolar     nonpolar           FALSE   FALSE
#> 5        neu         FALSE        polar        polar           FALSE   FALSE
#> 6        neu         FALSE     nonpolar     nonpolar           FALSE   FALSE

The detail output includes:

is_mismatch: Whether amino acids differ at this position
charge_change / polarity_change: Whether that property changed
counted: Whether this position counts toward the final tally

Function Reference

Argument	Default	Description
`sequence1`, `sequence2`	–	Two protein sequences (same length)
`filter_charge`	`NULL`	Filter by charge change (`TRUE`/`FALSE`/`NULL`)
`filter_polarity`	`NULL`	Filter by polarity change (`TRUE`/`FALSE`/`NULL`)
`return`	`"count"`	Output type: `"count"` or `"detail"`
`na_action`	`"exclude"`	Handle unknown residues: `"exclude"`, `"error"`, `"count"`

Donor-Recipient Matching

Calculating Mismatch Load

The calculateMismatchLoad() function aggregates amino acid mismatches across HLA loci between a donor and recipient.

Total Mismatch Load

calculateMismatchLoad(rgeno,
                      dgeno,
                      parallel = FALSE)
#> [1] 378

Per-Locus Breakdown

per_locus <- calculateMismatchLoad(
  rgeno, dgeno,
  return = "per_locus",
  parallel = FALSE
)
per_locus
#>   locus mismatch_load
#> 1     A            96
#> 2     B           128
#> 3  DQA1            71
#> 4  DQB1            83

Pairwise Allele Matrix

View mismatches between each recipient-donor allele pair at a specific locus:

mB <- calculateMismatchLoad(
  rgeno, dgeno,
  return = "pairwise",
  pairwise_locus = "B",
  parallel = FALSE
)
mB
#>          donor
#> recipient B*44:02 B*51:01
#>   B*07:02      37      33
#>   B*08:01      31      27

Applying Filters

# Charge-changing mismatches only
calculateMismatchLoad(rgeno,
                      dgeno,
                      filter_charge = TRUE,
                      parallel = FALSE)
#> [1] 140

# Polarity-changing mismatches only
calculateMismatchLoad(rgeno,
                      dgeno,
                      filter_polarity = TRUE,
                      parallel = FALSE)
#> [1] 138

# Restrict to specific loci
calculateMismatchLoad(rgeno,
                      dgeno,
                      loci = "A",
                      parallel = FALSE)
#> [1] 96

Function Reference

Argument	Default	Description
`recipient_geno`, `donor_geno`	–	HLA genotypes from `hlaGeno()`
`loci`	`NULL`	Restrict to specific loci (e.g., `c("A","B")`)
`filter_charge`, `filter_polarity`	`NULL`	Biophysical filters
`return`	`"total"`	`"total"`, `"per_locus"`, or `"pairwise"`
`pairwise_locus`	`NULL`	Locus for pairwise matrix
`parallel`	`TRUE`	Use parallel processing

Eplet Analysis

Eplets are short amino acid sequences that form antibody-binding epitopes on HLA molecules. They are key determinants of HLA immunogenicity.

Quantifying Eplet Mismatches

The quantifyEpletMismatch() function calculates the number of non-shared eplets between two alleles.

# Basic eplet comparison (A1/A2 evidence level)
quantifyEpletMismatch("A*01:01",
                      "A*02:01")
#> [1] 13

# Filter by exposition level
quantifyEpletMismatch("B*07:02",
                      "B*44:02",
                      exposition_filter = "High")
#> [1] 6

# Filter by reactivity confirmation
quantifyEpletMismatch("C*07:01",
                      "C*06:02",
                      evidence_level = NULL,
                      reactivity_filter = "Confirmed")
#> [1] 9

Calculating Eplet Load

The calculateEpletLoad() function calculates total donor-specific eplets across all loci.

Total Eplet Load

calculateEpletLoad(rgeno,
                   dgeno)
#> [1] 19

Per-Locus Summary

per <- calculateEpletLoad(rgeno,
                          dgeno,
                          return = "per_locus")
per
#>   locus eplet_load
#> 1     A          4
#> 2     B          6
#> 3  DQA1          1
#> 4  DQB1          8

Pairwise Allele Matrix

mB <- calculateEpletLoad(
  rgeno, dgeno,
  return = "pairwise",
  pairwise_locus = "B"
)
mB
#>          donor
#> recipient B*44:02 B*51:01
#>   B*07:02       5       4
#>   B*08:01       4       3

Applying Evidence and Exposition Filters

# High-exposition eplets only
calculateEpletLoad(rgeno,
                   dgeno,
                   exposition_filter = "High")
#> [1] 15

# Antibody-confirmed eplets only
calculateEpletLoad(rgeno,
                   dgeno,
                   reactivity_filter = "Confirmed")
#> [1] 19

# All evidence levels (no filter)
calculateEpletLoad(rgeno,
                   dgeno,
                   evidence_level = NULL)
#> [1] 79

Peptide Binding Prediction

MHCnuggets Integration

The predictMHCnuggets() function provides an R interface to the MHCnuggets deep learning model for peptide-MHC binding prediction.

Note: This section requires Python dependencies and is skipped on Windows due to path length limitations with the TensorFlow/MHCnuggets installation.

# Define peptides and allele
peptides <- c("SIINFEKL", "LLFGYPVYV")
allele <- "A*02:01"

# Predict binding affinity (IC50)
binding_results <- predictMHCnuggets(
  peptides = peptides,
  allele = allele,
  mhc_class = "I",
  rank_output = TRUE
)
#> Predicting for 2 peptides
#> Number of peptides skipped/total due to length 0 / 0
#> Building model
#> Closest allele found HLA-A02:01
#> BA_to_HLAp model found, predicting with BA_to_HLAp model...
#> Rank output selected, computing peptide IC50 ranks against human proteome peptides...
#> Writing output files...

print(binding_results)
#>     peptide    ic50
#> 1  SIINFEKL 5600.06
#> 2 LLFGYPVYV  535.92

Calculating Peptide Binding Load

The calculatePeptideBindingLoad() function predicts transplant risk by analyzing peptide-HLA binding between recipient molecules and donor-derived peptides.

Workflow:

Input processing - Standardizes recipient/donor allele formats
Peptide derivation - Generates mismatched peptides from sequence differences
Binding prediction - Predicts IC50 using PWM, NetMHCpan, or MHCflurry
Risk calculation - Aggregates predictions into risk scores

Total Risk Score

total_risk <- calculatePeptideBindingLoad(
  recipient = rgeno,
  donor = dgeno,
  return = "total"
)
print(total_risk)
#> [1] 2366

Per-Allele Summary

summary_load <- calculatePeptideBindingLoad(
  recipient = rgeno,
  donor = dgeno,
  return = "summary"
)
print(summary_load)
#>   hla_allele n_peptides n_strong n_weak risk_contribution
#> 1    A*01:01       1085        0    652            350.25
#> 2    A*02:01       1085        0    652            350.25
#> 3    B*07:02       1085        0    582            132.25
#> 4    B*08:01       1085        0    582            132.25
#> 5 DQA1*02:01       1085        0    652            350.25
#> 6 DQA1*05:05       1085        0    652            350.25
#> 7 DQB1*02:02       1085        0    652            350.25
#> 8 DQB1*03:01       1085        0    652            350.25

Detailed Peptide-Level Results

detailed_load <- calculatePeptideBindingLoad(
  recipient = rgeno,
  donor = dgeno,
  return = "detail"
)
head(detailed_load)
#>     peptide hla_allele predicted_ic50 binding_level contribution
#> 1 FDSDAASQR    A*01:01          10000    non_binder          0.0
#> 2 DSDAASQRM    A*01:01           2500          weak          0.5
#> 3 SDAASQRME    A*01:01          10000    non_binder          0.0
#> 4 DAASQRMEP    A*01:01           2500          weak          0.5
#> 5 AASQRMEPR    A*01:01           2500          weak          0.5
#> 6 ASQRMEPRA    A*01:01           2500          weak          0.5

Visualizing Antibody Data

Antibody Plots with `plotAntibodies()`

The plotAntibodies() function creates publication-quality visualizations of SAB and PRA assay data.

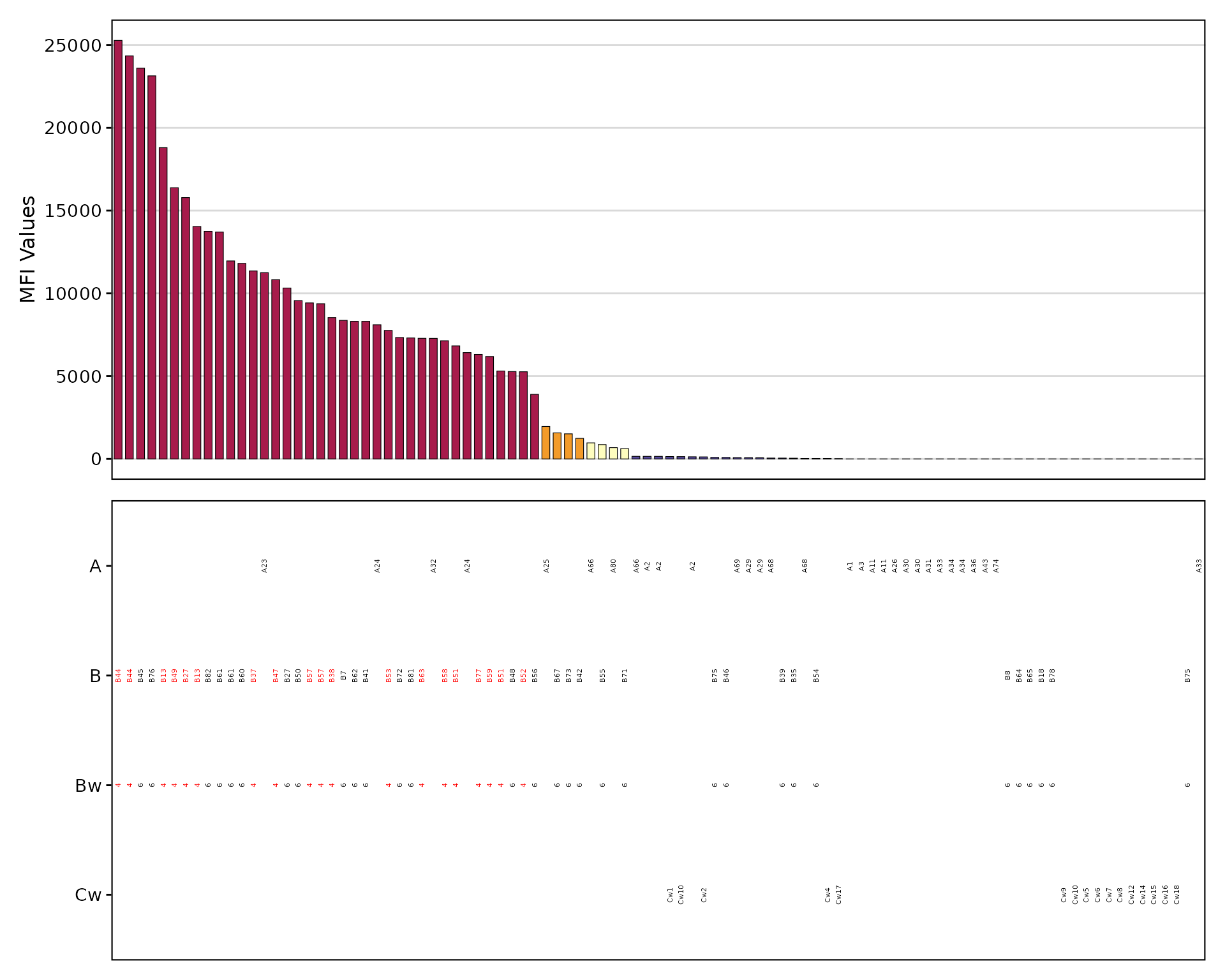

SAB Bar Plot

plotAntibodies(
  result_file = deepMatchR_example[[1]],
  type = "SAB",
  bead_cutoffs = c(2000, 1000, 500, 250),
  add_table = TRUE,
  palette = "spectral",
  highlight_antigen = c("Bw4")
)

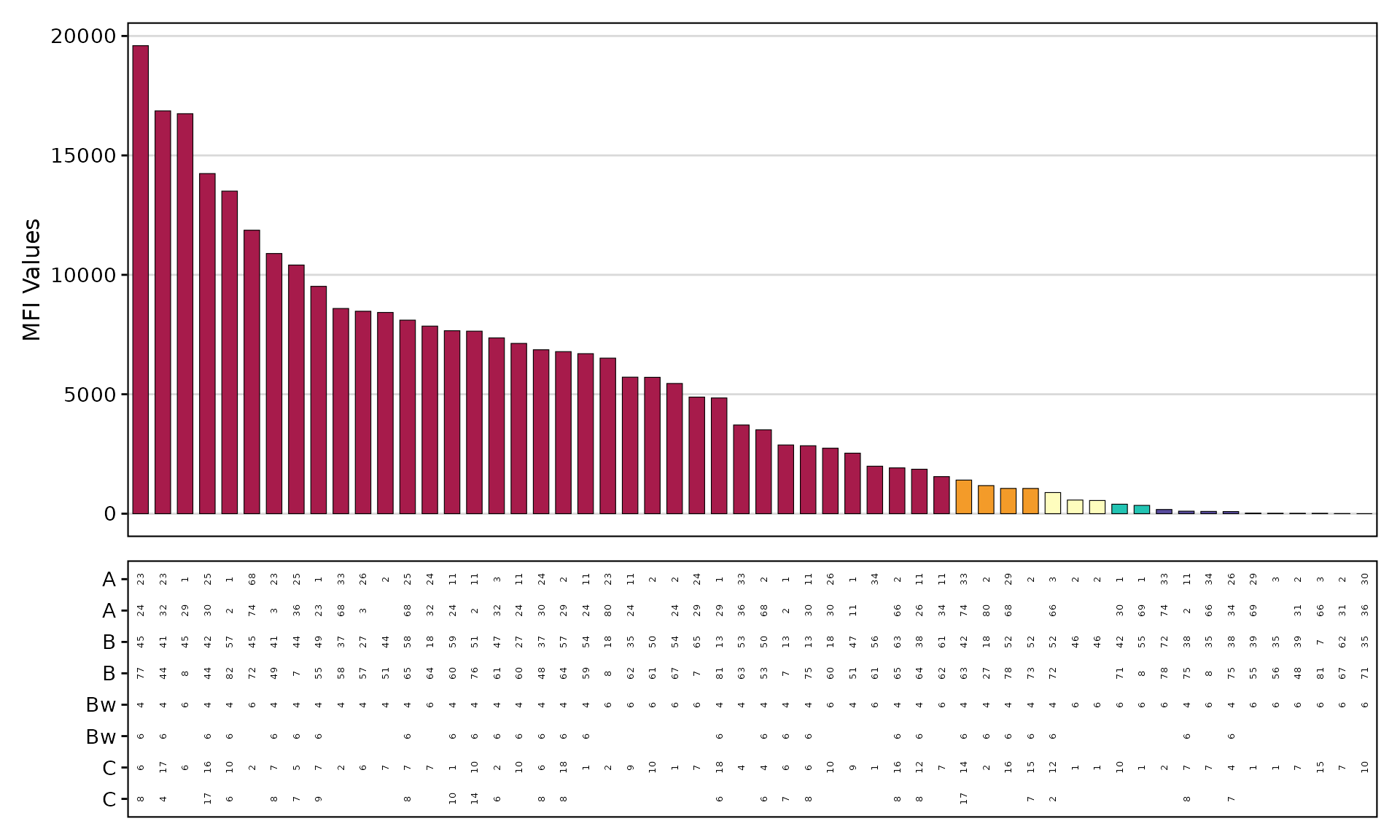

PRA Bar Plot

plotAntibodies(
  result_file = deepMatchR_example[[3]],
  type = "PRA",
  class = "I",
  add_table = TRUE,
  palette = "spectral"
)

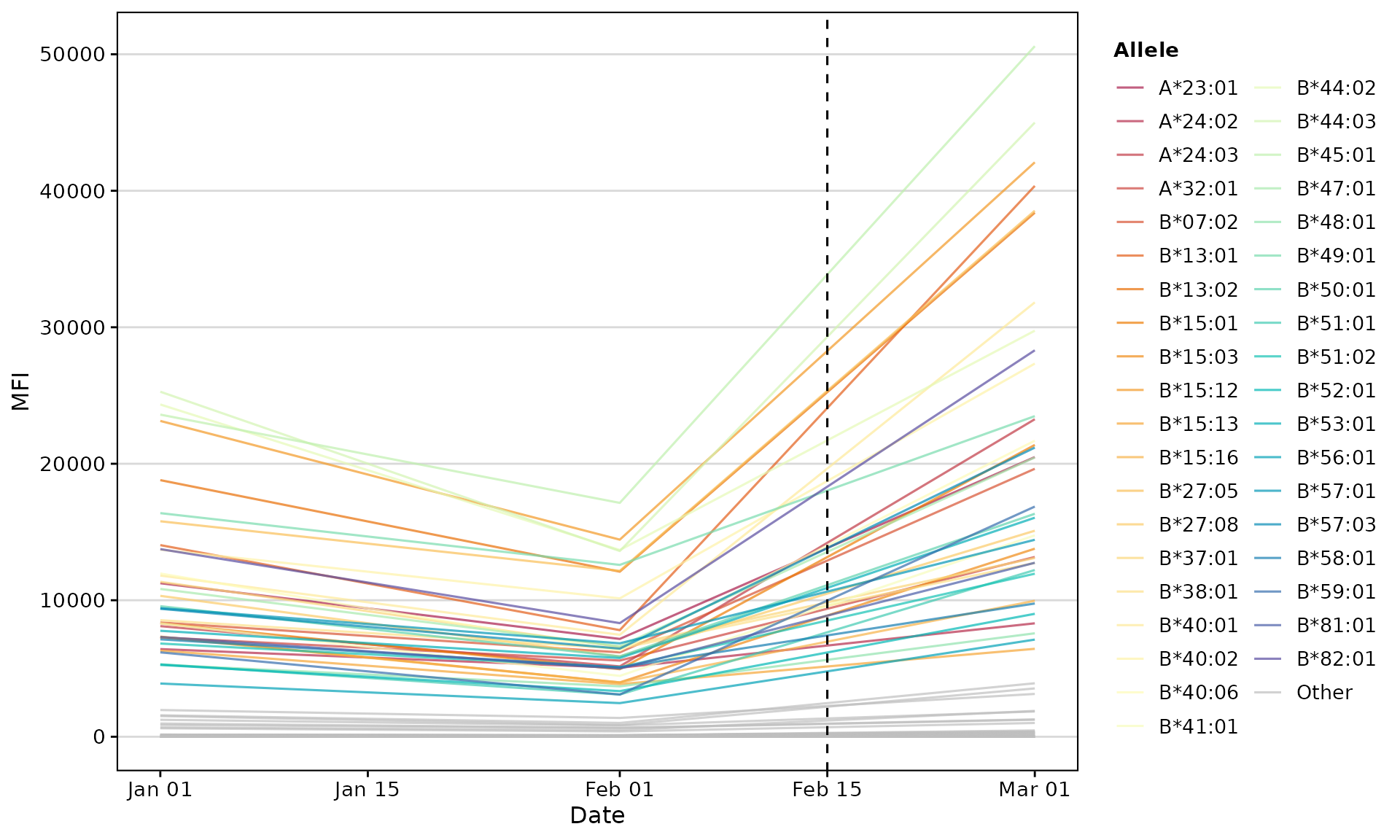

Time-Series Trend Plot

Track antibody levels over multiple time points:

# Simulate longitudinal data
set.seed(123)
sab_data_list <- list(
  "01/01/2023" = deepMatchR_example[[1]],
  "02/01/2023" = deepMatchR_example[[1]] %>%
    mutate(NormalValue = NormalValue * runif(n(), 0.5, 0.8)),
  "03/01/2023" = deepMatchR_example[[1]] %>%
    mutate(NormalValue = NormalValue * runif(n(), 1, 3))
)

plotAntibodies(
  result_file = sab_data_list,
  type = "SAB",
  plot_trend = TRUE,
  highlight_threshold = 5000,
  vline_dates = c("2023-02-15")
)

Eplet Reactivity Analysis with `epletAUC()`

The epletAUC() function calculates the Area Under the Curve (AUC) for eplet reactivity across multiple MFI thresholds. This provides a more robust measure than a single cutoff.

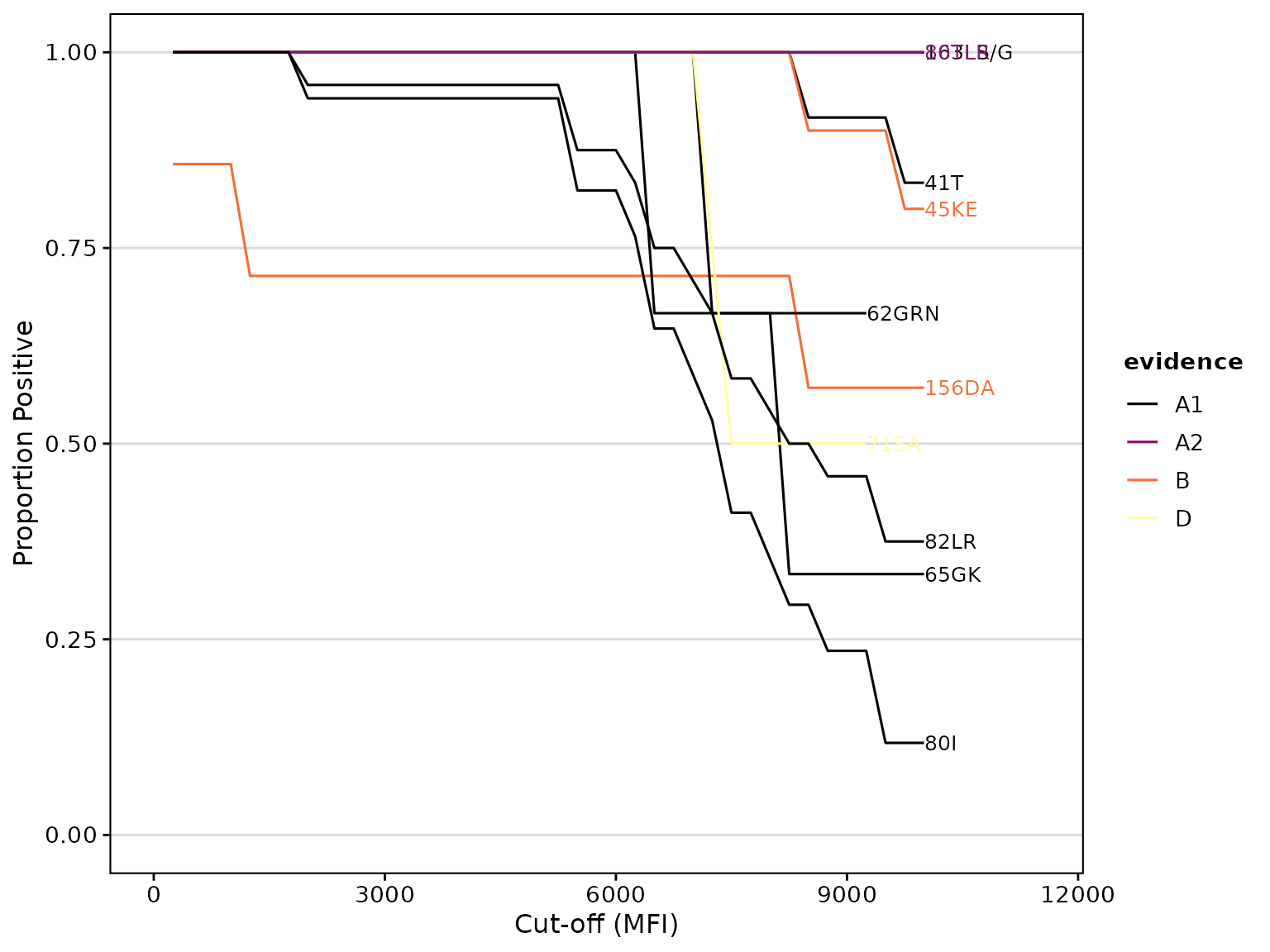

Visualize Reactivity Curves

epletAUC(
  result_file = deepMatchR_example[[1]],
  group_by = "evidence",
  evidence_level = c("A1", "A2", "B", "D"),
  plot_results = TRUE,
  cut_min = 250,
  cut_max = 10000,
  cut_step = 250,
  palette = "inferno"
)

Get AUC Values as Data

auc_result <- epletAUC(
  result_file = deepMatchR_example[[1]],
  plot_results = FALSE,
  cut_min = 250,
  cut_max = 10000,
  cut_step = 250
)
head(auc_result)
#>     eplet      AUC total_count   loci  norm_AUC
#>    <char>    <num>       <int> <char>     <num>
#> 1:   82LR 7817.708          24   A; B 0.7817708
#> 2:    80I 7022.059          17   A; B 0.7022059
#> 3:   69AA 5641.667          15      B 0.5641667
#> 4:  163EW 6691.667          15   A; B 0.6691667
#> 5:    41T 9583.333          12      B 0.9583333
#> 6:  65QIA 4761.364          11      B 0.4761364

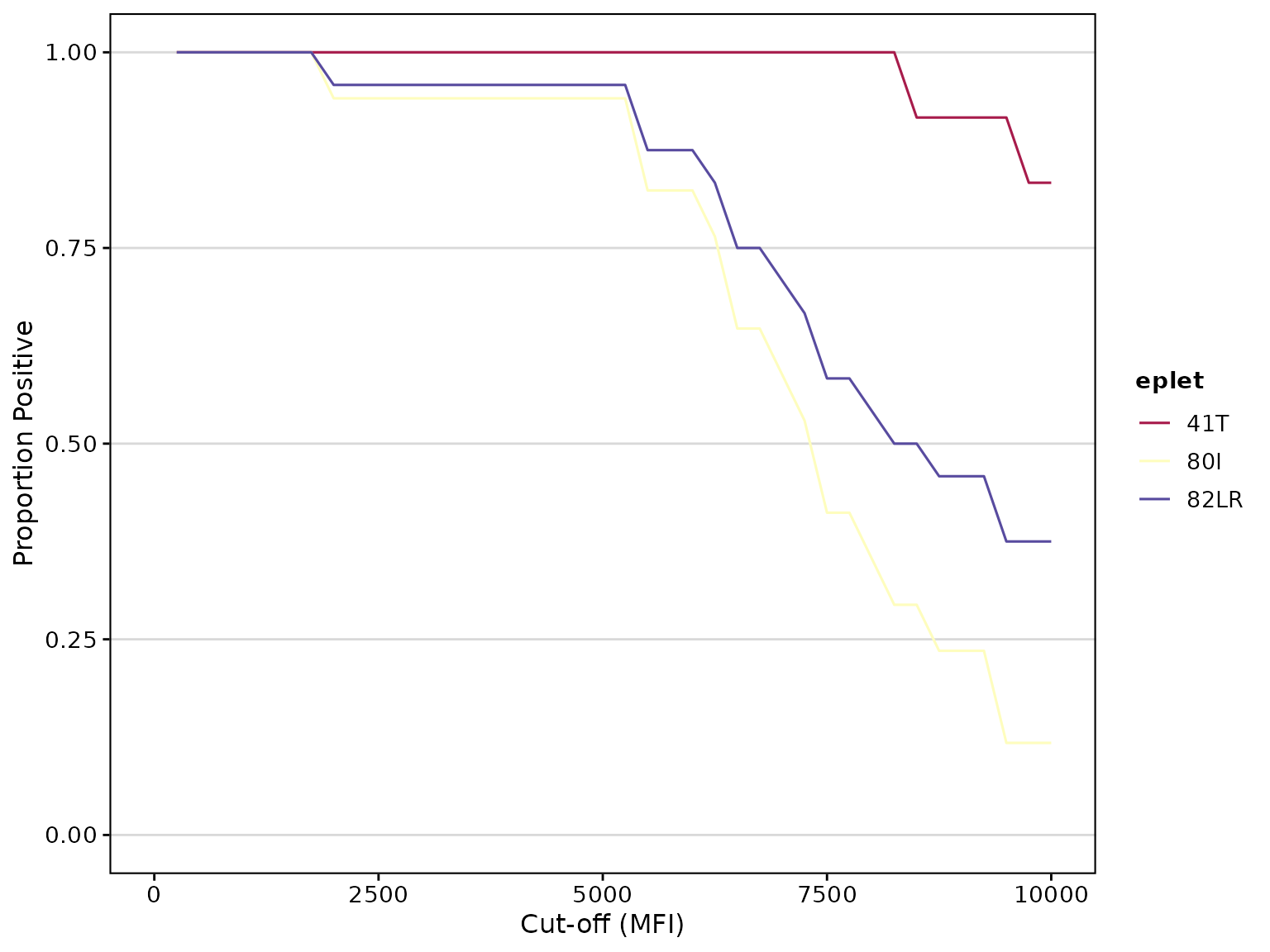

Advanced Filtering

epletAUC(
  result_file = deepMatchR_example[[1]],
  label = FALSE,
  plot_results = TRUE,
  eplet_filter = 10,      # Minimum bead count
  percPos_filter = 1.0    # Minimum positivity threshold
)

Eplet Visualization with `plotEplets()`

The plotEplets() function offers three visualization types for eplet reactivity data.

Treemap View

Ideal for an overview of eplet prominence. Tile area represents importance (positive beads x positivity rate):

plotEplets(
  result_file = deepMatchR_example[[1]],
  plot_type = "treemap",
  cutoff = 2000,
  evidence_level = c("A1", "A2", "B"),
  percPos_filter = 0.4,
  palette = "spectral"
)

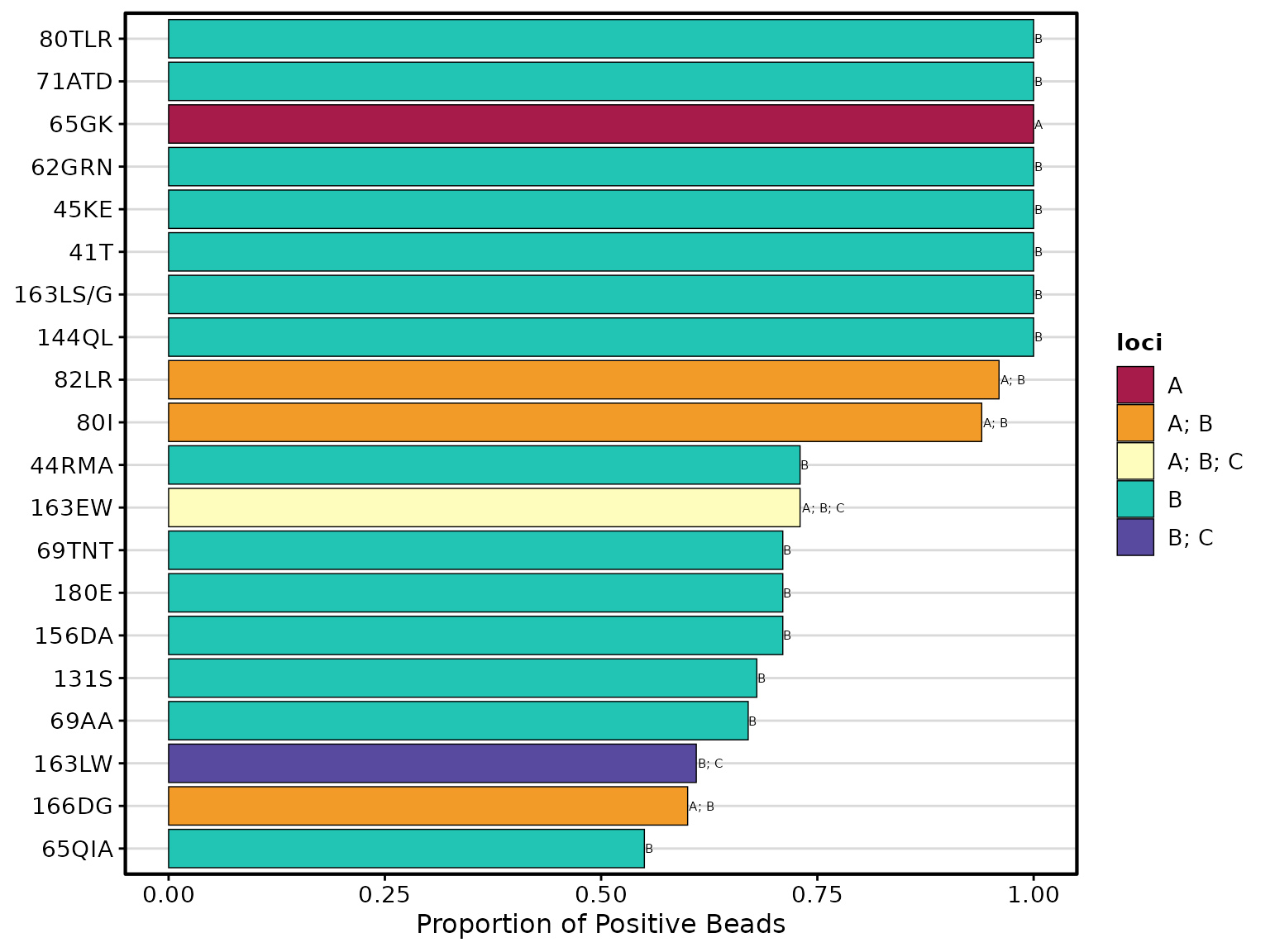

Bar Plot

Ranks eplets by positivity rate at a specific threshold:

plotEplets(
  result_file = deepMatchR_example[[1]],
  plot_type = "bar",
  group_by = "loci",
  cutoff = 2000,
  evidence_level = c("A1", "A2", "B"),
  percPos_filter = 0.4,
  top_eplets = 20,
  palette = "spectral"
)

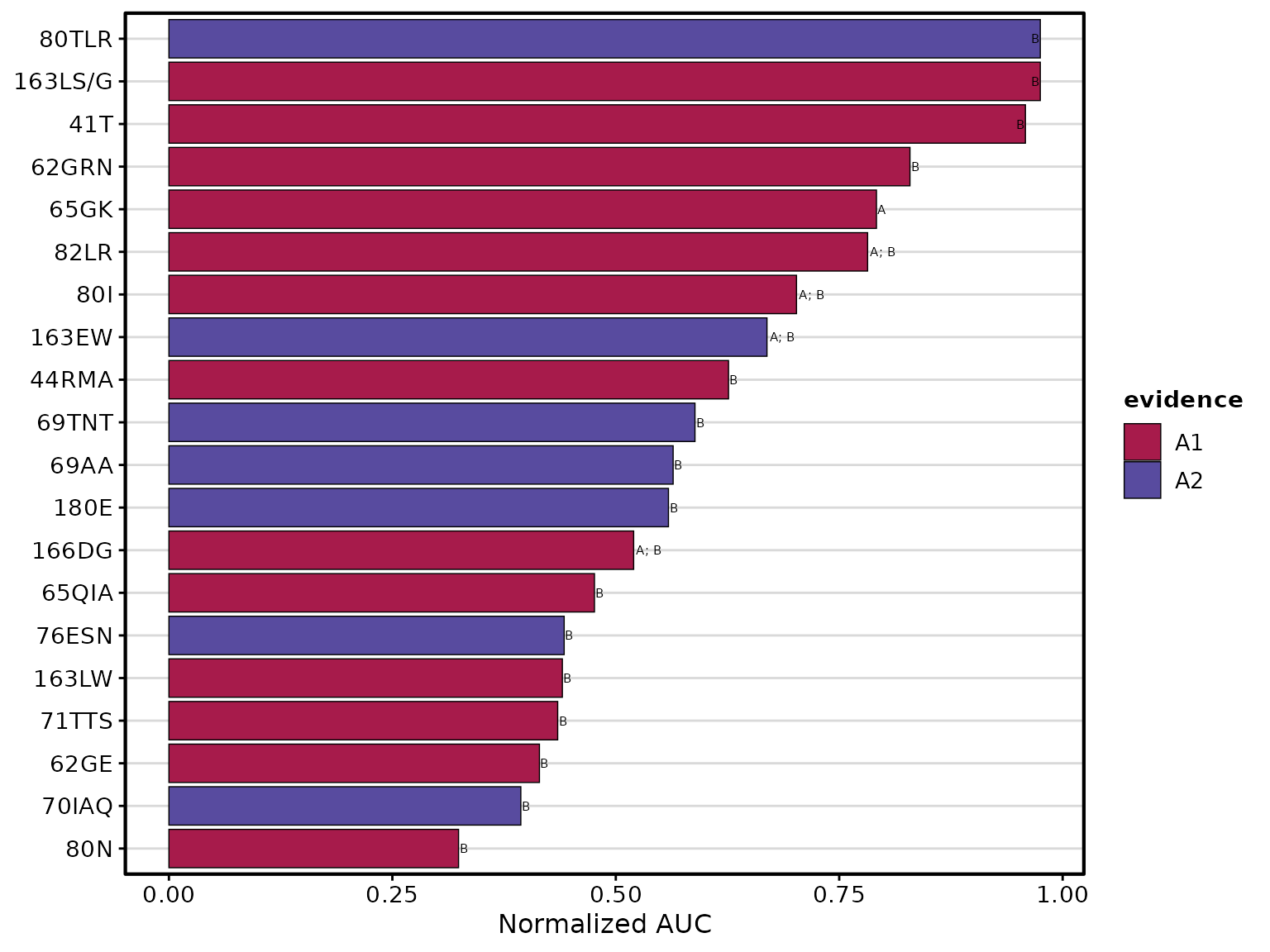

AUC Bar Plot

Ranks eplets by performance across multiple thresholds:

plotEplets(
 result_file = deepMatchR_example[[1]],
  plot_type = "AUC",
  percPos_filter = 0.4,
  group_by = "evidence_level",
  cut_min = 250,
  cut_max = 10000,
  cut_step = 250,
  top_eplets = 20,
  palette = "spectral"
)

Session Information

sessionInfo()
#> R version 4.5.2 (2025-10-31)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.3 LTS
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
#>
#> locale:
#>  [1] LC_CTYPE=C.UTF-8       LC_NUMERIC=C           LC_TIME=C.UTF-8
#>  [4] LC_COLLATE=C.UTF-8     LC_MONETARY=C.UTF-8    LC_MESSAGES=C.UTF-8
#>  [7] LC_PAPER=C.UTF-8       LC_NAME=C              LC_ADDRESS=C
#> [10] LC_TELEPHONE=C         LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] ggplot2_4.0.1     dplyr_1.1.4       deepMatchR_0.99.0 BiocStyle_2.38.0
#>
#> loaded via a namespace (and not attached):
#>  [1] ggfittext_0.10.3       gtable_0.3.6           dir.expiry_1.18.0
#>  [4] xfun_0.56              bslib_0.10.0           lattice_0.22-7
#>  [7] quadprog_1.5-8         vctrs_0.7.1            tools_4.5.2
#> [10] generics_0.1.4         stats4_4.5.2           parallel_4.5.2
#> [13] tibble_3.3.1           pkgconfig_2.0.3        Matrix_1.7-4
#> [16] data.table_1.18.0      RColorBrewer_1.1-3     S7_0.2.1
#> [19] desc_1.4.3             S4Vectors_0.48.0       readxl_1.4.5
#> [22] lifecycle_1.0.5        compiler_4.5.2         farver_2.1.2
#> [25] textshaping_1.0.4      Biostrings_2.78.0      Seqinfo_1.0.0
#> [28] htmltools_0.5.9        sass_0.4.10            yaml_2.3.12
#> [31] pillar_1.11.1          pkgdown_2.2.0          crayon_1.5.3
#> [34] jquerylib_0.1.4        cachem_1.1.0           basilisk_1.22.0
#> [37] tidyselect_1.2.1       rvest_1.0.5            digest_0.6.39
#> [40] stringi_1.8.7          bookdown_0.46          labeling_0.4.3
#> [43] fastmap_1.2.0          grid_4.5.2             treemapify_2.6.0
#> [46] cli_3.6.5              magrittr_2.0.4         patchwork_1.3.2
#> [49] withr_3.0.2            filelock_1.0.3         scales_1.4.0
#> [52] rmarkdown_2.30         pwalign_1.6.0          XVector_0.50.0
#> [55] httr_1.4.7             reticulate_1.44.1      cellranger_1.1.0
#> [58] ragg_1.5.0             png_0.1-8              memoise_2.0.1
#> [61] evaluate_1.0.5         knitr_1.51             IRanges_2.44.0
#> [64] immReferent_0.99.6     rlang_1.1.7            Rcpp_1.1.1
#> [67] glue_1.8.0             BiocManager_1.30.27    xml2_1.5.2
#> [70] directlabels_2025.6.24 BiocGenerics_0.56.0    svglite_2.2.2
#> [73] jsonlite_2.0.0         R6_2.6.1               systemfonts_1.3.1
#> [76] fs_1.6.6

Getting Help

If you have questions, suggestions, or encounter issues:

GitHub Issues: github.com/BorchLab/deepMatchR/issues

Nick Borcherding

Compiled: January 27, 2026

Introduction

Installation

Quick Start

Working with HLA Data

Built-in Example Data

Data Format Requirements

Creating HLA Genotypes

Sequence-Level Analysis

Retrieving Allele Sequences

Quantifying Amino Acid Mismatches

Basic Usage

Filtering by Biophysical Properties

Detailed Position-by-Position Analysis

Function Reference

Donor-Recipient Matching

Calculating Mismatch Load

Total Mismatch Load

Per-Locus Breakdown

Pairwise Allele Matrix

Applying Filters

Function Reference

Eplet Analysis

Quantifying Eplet Mismatches

Calculating Eplet Load

Total Eplet Load

Per-Locus Summary

Pairwise Allele Matrix

Applying Evidence and Exposition Filters

Peptide Binding Prediction

MHCnuggets Integration

Calculating Peptide Binding Load

Total Risk Score

Per-Allele Summary

Detailed Peptide-Level Results

Visualizing Antibody Data

Antibody Plots with plotAntibodies()

SAB Bar Plot

PRA Bar Plot

Time-Series Trend Plot

Eplet Reactivity Analysis with epletAUC()

Visualize Reactivity Curves

Get AUC Values as Data

Advanced Filtering

Eplet Visualization with plotEplets()

Treemap View

Bar Plot

AUC Bar Plot

Session Information

Getting Help

Antibody Plots with `plotAntibodies()`

Eplet Reactivity Analysis with `epletAUC()`

Eplet Visualization with `plotEplets()`
